Automotive & Off-Road Lighting Buyer’s Guide • 2026 Edition
High-Output Illumination: The Complete Auxbeam Vehicle Lighting Guide
From razor-sharp 240W LED headlight bulb conversions and multi-mode amber pod ditch lights to heavy-duty 5D-PRO combo light bars and solid-state 8-gang Bluetooth switch panels—find the exact lighting and electrical setup for your truck, SUV, Jeep, or overland rig.
Automotive lighting has evolved far beyond the dim 55W halogen incandescent bulbs of the past. Today, solid-state CSP (Chip Scale Packaging) LED emitters, advanced internal optical reflectors, and intelligent thermal management allow drivers to transform their nighttime visibility. Auxbeam has established itself as one of the most popular brands among off-roaders, truck owners, and everyday motorists by delivering high-intensity lighting and vehicle electrical controls without the four-figure price tags of boutique commercial brands.
However, building a functional, safe vehicle lighting setup requires matching the hardware to your actual driving environment:
- Street-Legal Forward Lighting: Replacing factory halogen bulbs with high-efficiency LED bulbs requires precise optical alignment, 360-degree collar adjustment, and clean cut-off lines to avoid dangerous glare for oncoming motorists.
- Auxiliary Off-Road Illumination: High-power LED light bars and A-pillar pod lights cast thousands of lumens into the wilderness, but their unfocused flood and intense spot beams must be reserved strictly for trails, job sites, and off-highway driving.
- Centralized Electrical Management: Adding three or four sets of auxiliary lights quickly turns your engine bay into a hazardous nest of tangled wires and loose inline fuses. Digital switch panels consolidate control into a single clean in-cab touchpad.
Start With Your Vehicle and Driving Needs
Before purchasing lights, determine exactly where and how your vehicle operates. Auxbeam manufactures products tailored to five distinct driving applications:
1. Everyday Road Driving
Your factory halogen bulbs are yellow, dim, or burning out, making dark suburban and highway commuting stressful.
Recommended: Auxbeam GX Ultra or F-16 Series
Direct plug-and-play bulb replacements designed to work inside factory reflector or projector housings. Verify socket type (H11, 9005, 9006, H4) and set beam cutoffs.
2. Truck & SUV Driving
You frequently drive dark rural roads, country highways, and poorly lit mountain passes where wildlife strikes are a genuine risk.
Recommended: 3″ or 4″ Pod Lights (A-Pillar / Bumper)
Compact driving pods equipped with amber fog/dust modes and spot beams cast focused illumination far down dark shoulders without cluttering your front bumper.
3. Off-Road Trail Adventures
You take your 4×4, Jeep, or overland rig onto rocky trails, deep sand, dunes, and remote forest roads after sundown.
Recommended: 5D-PRO Light Bar + Ditch Pods
Combo beam bars (spot center + flood reflectors) deliver massive punch past 1,000 meters while lighting up obstacles, ruts, and trees immediately beside your tires.
4. Customization & Crawling
You navigate technical boulder crawls at night where tire placement is critical, or you want customized under-chassis illumination.
Recommended: 8-Pod or 12-Pod RGBW Rock Lights
Mounted inside wheel wells and along frame rails. Controlled via Bluetooth app for 16 million colors, plus dedicated white LEDs for real trail spotting.
5. Multi-Accessory Control
You have multiple lights, a winch, an air compressor, and radio gear, and your dashboard is running out of space for ugly rocker switches.
Recommended: Auxbeam AR-800 8-Gang Panel
Consolidates all wiring into an under-hood solid-state relay box. Run a single thin wire through the firewall to an elegant backlit touchpad.
Understand Auxbeam’s Main Product Categories
Auxbeam manufactures hundreds of individual SKUs across distinct automotive lighting and electrical control families. Understanding how these categories differ ensures you buy the right equipment for your vehicle:
1. LED Replacement Headlight Bulbs
Engineered to swap directly into your vehicle’s factory headlight housings in place of traditional halogen incandescent bulbs. Modern Auxbeam bulbs feature ultra-thin copper PCB boards with dual-sided CSP LED chips that mimic the exact focal point of a halogen filament. High-tier models (like the GX Ultra) integrate copper liquid heat pipes and 20,000 RPM turbofans inside an aviation aluminum base to dissipate heat and prevent thermal throttling.
2. Complete LED Headlight Assemblies
Unlike bulb replacements, complete assemblies replace the entire physical headlight bucket. Auxbeam’s most famous offerings in this category are its 7-inch round projector assemblies engineered for Jeep Wrangler (JK, TJ), classic Ford/Chevy trucks, and motorcycles. These feature integrated high/low-beam projectors, daytime running light (DRL) halos, amber turn signal rings, and built-in anti-flicker CANbus circuitry.
3. Off-Road LED Light Bars
Light bars provide the maximum sheer volume of light. Available in sizes ranging from 12 inches up to 52 inches in both straight and curved aerodynamic formats. Auxbeam’s flagship 5D-PRO Series uses a hybrid optical design: deep side reflector cups that throw a wide 60-degree flood beam, combined with central magnifying projector lenses that fire a concentrated spot beam over a kilometer down trail corridors.
4. LED Pod and Ditch Lights
Compact 3-inch and 4-inch square or round auxiliary lights designed for mounting on A-pillar cowl brackets, front bumper bull bars, or rear chase racks. Auxbeam’s 6-Mode pod lights feature dual-color white and amber chips with integrated memory, allowing drivers to switch instantly from high-beam driving spot to amber dust/fog penetration or warning strobes.
5. Multi-Circuit Electronic Switch Panels
A category where Auxbeam is a recognized industry leader. Rather than drilling multiple holes in your dashboard and running separate fused power wires into your cabin, Auxbeam switch panels (available in 6-gang, 8-gang, and 12-gang) place a solid-state relay/fuse control box under your hood. A single multi-core control cable connects to an in-cab touchscreen or backlit push-button panel with programmable toggle, momentary, and pulsed strobe modes.
| Category | Primary Application | Typical Output / Power | Road Legal Status | Key Fitment Consideration |
|---|---|---|---|---|
| LED Headlight Bulbs | Factory bulb replacement for road driving | 12,000 to 40,000 Lumens / set | Street (Properly Aimed) | Socket base (H11, 9005, etc.) & dust cap clearance |
| Headlight Assemblies | Complete housing replacement (Jeep / Trucks) | 4,500 LM High / 3,200 LM Low | DOT / SAE Compliant | 7-inch round bucket & H4/H13 harness connector |
| LED Light Bars | Trail, desert, and worksite wide illumination | 12,000 to 55,000 Lumens | Off-Road Only (Cover on Highway) | Mounting bracket width (straight vs. curved) & amp draw |
| LED Pod Lights | Ditch lights, bumper fog, and dust lighting | 9,600 to 12,800 Lumens / pair | Auxiliary / Off-Road | Mounting bracket location & multi-mode switch wiring |
| RGB Rock Lights | Under-chassis obstacle spotting & styling | Multi-color RGB + Pure White | Off-Road / Static Show | Wire lead length to rear wheel wells & app Bluetooth sync |
| Switch Panels | Consolidating 6 to 12 accessory power circuits | 60A to 100A total capacity | Universal Vehicle Component | Under-hood relay box space & battery terminal hookup |
Featured Auxbeam Products — In-Depth Model Spotlights
Below, we examine seven of Auxbeam’s most popular and rigorously tested lighting and control products across off-road, road replacement, and electrical categories.

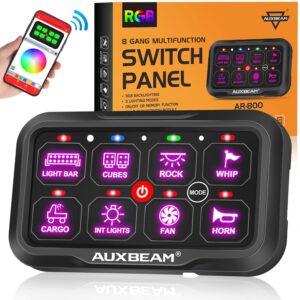

1. Auxbeam AR-800 RGB Bluetooth 8-Gang Switch Panel System
Product Overview:
The Auxbeam AR-800 is the benchmark for aftermarket automotive accessory management. Instead of running eight separate positive and ground wires through your firewall and cluttering your dashboard with mismatched rocker switches, the AR-800 uses an under-hood solid-state relay box rated for 60 amps total current (720W at 12V or 1200W at 24V). A single thin control wire routes through the firewall to a compact, automotive-grade in-cab keypad.
What elevates the AR-800 above legacy relay boxes is its dual-control intelligence. In addition to the physical touchpad, it features integrated Bluetooth 5.0 connecting to an iOS/Android smartphone app. Drivers can customize full RGB backlighting colors, adjust brightness via an automatic ambient light sensor, and program each of the eight circuits into three operational modes: Toggle (standard on/off for light bars), Momentary (press-and-hold for horns or winches), or Pulsed (flashing strobe for emergency/chase lights).
| Operating Voltage | DC 12V – 24V (Auto-sensing) |
| Maximum Current & Power | 60 Amps Total | 720W @ 12V | 1200W @ 24V (Built-in 60A circuit breaker) |
| Circuit Outputs | 8 fused accessory circuits (2 × 30A, 2 × 20A, 2 × 15A, 2 × 10A) |
| Programmable Modes | Toggle (Constant), Momentary (Push to hold), Pulsed (Strobe) per circuit |
| Backlight & Customization | Full RGB color wheel, auto-dimming light sensor, 60+ universal DIY switch stickers |
| Enclosure & Protection | IP65 waterproof relay box, solid-state thermal cutoff (-40°C to +105°C), reverse polarity protection |
Buying Recommendation: If you plan to install more than two electrical accessories on your vehicle, the AR-800 saves hours of complex wiring and protects your vehicle from dangerous electrical shorts.
2. Auxbeam GX Ultra Series High-Power LED Headlight Bulbs
Product Overview:
The Auxbeam GX Ultra represents the flagship tier of LED headlight replacement technology. Engineered to replace standard OEM halogen bulbs, the GX Ultra delivers a staggering 240W per set (120W per bulb) and up to 40,000 lumens of raw output. To safely manage this extreme level of power without thermal degradation, Auxbeam engineered an aviation 6063 aluminum chassis featuring bold dual sintered copper liquid heat pipes combined with a 20,000 RPM silent turbofan.
Crucially, high power means nothing without optical precision. The GX Ultra uses large MAX 7545 CSP chips aligned to match the exact physical filament geometry of factory halogen bulbs. Combined with a 360-degree rotating collar, drivers can rotate the bulb to a 3 o’clock and 9 o’clock orientation, projecting a razor-sharp cutoff line that maximizes long-range road throw without scattering blinding glare into oncoming traffic.
| Power & Luminous Flux | 240W per set (120W per bulb) | Up to 40,000 Lumens per set |
| LED Emitter Type | Automotive Grade MAX 7545 CSP Chips (77 mil ultra-dense emitters) |
| Color Temperature | 6500K Cool White (Daylight clear beam) |
| Cooling Architecture | Dual vacuum copper heat pipes + 20,000 RPM turbofan + 6063 aluminum heat sink |
| Waterproof & Lifespan | IP68 waterproof rating | 55,000+ operating hours |
| CANbus Compatibility | External smart IC driver with integrated CANbus anti-flicker (99% vehicle compatibility) |
| Available Sockets | H11/H8/H9, 9005/HB3, 9006/HB4, H4/9003, H13/9008, 9012/HIR2 |
Buying Recommendation: If you want the brightest, longest-throwing street-legal replacement bulb Auxbeam offers, the GX Ultra is their undisputed performance champion.

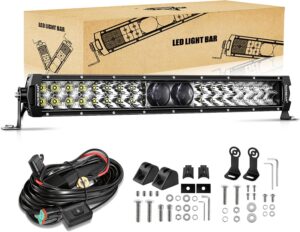

3. Auxbeam 5D-PRO Series Curved/Straight Off-Road LED Light Bar
Product Overview:
The Auxbeam 5D-PRO Series represents the heavy artillery of off-road trail illumination. Available in straight and curved formats from 12 inches up to 52 inches, the 5D-PRO is built around high-efficiency OSRAM P8 and KW3 LED chips housed in a thick, finned die-cast aluminum chassis. Its defining characteristic is its proprietary **5D optical architecture**:
Standard light bars use simple chrome reflector cups that scatter unfocused light into the sky and trees. The 5D-PRO combines deep side reflector cups (producing a 60-degree broad flood spread) with massive central optical magnifying lenses. These lenses condense the central emitters into a laser-tight 10-degree spot beam that punches through trail dust to project 1 lux of usable light past 1,345 meters (on the 52″ 450W model). With an IP68 waterproof rating, military breather valve, and dual mounting brackets, it is built for extreme overland environments.
| Available Sizes | 12″ (100W), 22″ (180W), 32″ (270W), 42″ (360W), 52″ (450W) — Straight & Curved |
| Luminous Flux (52″ Model) | Up to 55,000 Lumens | 1 lux @ 1,345 meters (4,412 feet) reach |
| Optical Beam Pattern | 5D Combo: 10° concentrated projector spot center + 60° wide flood sides |
| LED Chipset | High-Intensity OSRAM P8 + KW3 German-engineered emitters |
| Operating Voltage | DC 10V – 30V (12V/24V compatible) |
| Waterproof & Breather | IP68 certified, waterproof military pressure-equalizing breather valve |
| Included Accessories | Dual mounting brackets (360° side mounts + sliding bottom mounts), hardware |
Buying Recommendation: If you need maximum optical range combined with wide trail shoulder coverage, the 5D-PRO combo series provides commercial-grade distance at an accessible price point.
4. Auxbeam 3″ & 4″ 6-Mode Amber/White LED Pod Lights
Product Overview:
Auxbeam’s 6-Mode Pod Lights are among the most versatile auxiliary lights on the market. Available in 3-inch (96W/pair) and 4-inch (110W+/pair) square cube formats, these lights eliminate the need to choose between dedicated white driving lights and dedicated amber fog lights. Inside each heavy-duty aluminum pod sits a dual-color LED array that cycles seamlessly through **six distinct lighting profiles**:
- White Spot Beam: Intense 6500K beam for dark trail and rural driving.
- Amber Flood Beam: 3000K amber light engineered specifically to penetrate dense fog, heavy rain, snow, and trail dust without blinding back-glare.
- White & Amber Combo: Both white spot and amber perimeter active simultaneously.
- White Strobe: Rapid white pulsing for worksite and trail warning.
- Amber Strobe: Hazard warning for roadside recovery or emergency clearance.
- White/Amber Cross Strobe: High-visibility alternating tactical flash.
A built-in memory chip ensures that when you switch your vehicle off and on, the pods remember your last selected mode. A simple 3-second long press on the switch automatically resets both pods back to primary white spot mode.
| Size & Power (Pair) | 3-Inch: 96W / 9,600 LM per pair | 4-Inch: 110W / 12,800 LM per pair |
| Color Temperatures | 6500K Cool White & 3000K Penetrating Amber/Yellow |
| Beam Architecture | Spot White Center + Wide Angle Amber Perimeter Reflectors |
| Operating Modes | 6 Modes (White, Amber, Combo, White Strobe, Amber Strobe, Mixed Strobe) |
| Memory & Reset | Automatic state memory chip | 3-second hold reset function |
| Housing & Waterproofing | Die-cast aluminum with deep cooling fins, shatterproof PC lens, IP68 rated |
Buying Recommendation: If you want all-weather versatility from a compact set of cowl or bumper pods, the 6-Mode dual-color series delivers unparalleled utility.
5. Auxbeam 7″ Round DOT-Approved LED Headlight Assemblies
Product Overview:
Factory 7-inch round sealed-beam halogen headlights found on vehicles like the Jeep Wrangler (JK, TJ, CJ), classic Ford Bronco, Land Rover Defender, and vintage Chevy trucks are notorious for poor nighttime performance. Auxbeam’s 7-inch Round Projector Assemblies solve this completely by replacing the entire sealed-beam unit with a DOT and SAE certified modern projector enclosure.
The assembly features distinct high-performance optical sections: a razor-sharp projector low beam (3,200 lumens) with a compliant horizontal cutoff line that prevents glare, a punchy high beam (4,500 lumens), an outer glowing white LED halo for daytime running lights (DRL), and an integrated amber halo that flashes dynamically with your vehicle’s turn signals. Built-in internal anti-flicker decoders eliminate the common CANbus pulse-width-modulation (PWM) flicker seen on modern Jeeps.
| Fitment Size | Standard 7-inch round headlight bucket (Jeep Wrangler JK/TJ, Hummer, Harley, classic trucks) |
| Lumen Output | High Beam: 4,500 LM per light | Low Beam: 3,200 LM per light |
| Certification & Compliance | DOT & SAE approved marking stamped directly onto the outer polycarbonate lens |
| Integrated Halo Functions | Full-circle White DRL Halo + Amber Turn Signal Blinker Wire |
| Connectors & Wiring | Direct H4 three-prong plug with included H4-to-H13 adapter harnesses |
| Anti-Flicker Hardware | Built-in internal EMC / CANbus anti-flicker decoder modules |
Buying Recommendation: If you drive a Jeep JK/TJ or vintage 4×4 with 7-inch buckets, this complete assembly delivers street-legal optical perfection and modern halo styling.
6. Auxbeam 8-Pod & 12-Pod RGBW Bluetooth Off-Road Rock Lights
Product Overview:
Auxbeam’s RGBW Rock Light kits are engineered to withstand the punishing physical abuse of rock crawling, mud bogging, and water crossings. Unlike cheap plastic kits that crack upon impact, Auxbeam rock pods feature heavy-duty die-cast aluminum housings sealed with optical silicone to achieve an IP68 waterproof rating. Each pod includes both curved rubber pads (for mounting to tubular roll cages and control arms) and flat rubber pads (for frame rails and inner fenders).
The critical upgrade in this series is the **”W” in RGBW**: in addition to standard red, green, and blue diodes, each pod contains dedicated independent white LED chips. This produces a bright, clean 6000K pure white light for practical tire placement when crawling technical obstacles at night, rather than the washed-out blueish tint of standard RGB kits. Controlled via Bluetooth app or RF remote, the kit includes a dedicated brake wire trigger that instantly forces all underglow pods to solid red when you press the brake pedal.
| Kit Configurations | Available in 4-Pod, 8-Pod, and 12-Pod complete wiring bundles |
| Emitter Technology | RGBW: 16 Million customizable colors + Dedicated Independent Pure White LEDs |
| Control Interfaces | Bluetooth Smartphone App (iOS/Android) + Wireless RF Remote Control |
| Special Safety Trigger | Brake light wire trigger (forces all pods to bright red under vehicle braking) |
| Waterproof & Durability | IP68 submersion proof, solid die-cast aluminum housing, anti-scratch PC lens |
| Mounting Hardware | Curved tube-mount rubber pads + flat chassis pads + stainless steel screws |
Buying Recommendation: If you want durable aluminum underglow that provides genuine pure white light for night-trail tire spotting, this RGBW kit is the off-roader’s standard.
7. Auxbeam F-16 Series Compact Active-Cooled LED Headlight Bulbs
Product Overview:
For drivers who want a substantial upgrade over dim factory halogen bulbs without spending top-tier money, the Auxbeam F-16 Series is one of the best-selling budget LED bulb conversions in North America. Producing 60W per set (30W per bulb) and 12,000 lumens, the F-16 delivers approximately 300% brighter illumination than standard 55W halogen bulbs while consuming less electrical current.
The F-16 features an integrated base cooling fan recessed inside an aviation aluminum body, keeping total bulb length compact enough to fit inside tight headlight housings where larger bulbs struggle with dust-cover clearance. With a natural 6000K crisp white color temperature and a 360-degree adjustable collar, the F-16 delivers reliable road visibility and plug-and-play simplicity.
| Power & Luminous Output | 60W per set (30W per bulb) | 12,000 Lumens per set |
| Color Temperature | 6000K Natural Crisp White |
| Operating Voltage | DC 9V – 12V (Compatible with standard 12V automotive systems) |
| Cooling Mechanism | Internal high-speed turbofan inside aviation 6063 aluminum housing |
| Waterproof Rating | IP68 certified water and dust resistance |
| Installation Style | 100% Plug-and-Play factory socket replacement |
Buying Recommendation: If you want an affordable, dependable halogen bulb upgrade that fits easily behind tight factory dust covers, the F-16 Series is an unbeatable value.
Master LED Lighting Comparison Table
Compare the primary Auxbeam lighting and control categories to determine the ideal addition to your vehicle build:
| Category | Main Purpose | Mounting Location | Key Spec to Check | Best Fit Application | Road Legal Consideration | Options |
|---|---|---|---|---|---|---|
| GX Ultra Bulbs | Maximum highway forward throw | Factory headlight housing | Bulb socket & 1.5″ rear depth | Commuters, highway trucks | Legal with proper optical aim | Explore → |
| F-16 Bulbs | Budget halogen bulb upgrade | Factory headlight housing | Bulb base (H11, 9005, etc.) | Older vehicles, tight housings | Legal with proper optical aim | Explore → |
| 5D-PRO Light Bar | Kilometer-range trail illumination | Roof rack, bumper, cowl | Bar width & total amp draw | High-speed desert, overland | Strictly off-road use only | Explore → |
| 6-Mode Pods | Dual-color driving & fog lighting | A-pillar ditch, front bumper | Bracket fitment & 3-wire harness | All-weather mountain & trail | Amber fog legal; strobes off-road | Explore → |
| 7″ Headlights | Complete sealed-beam upgrade | 7-inch round headlight bucket | H4/H13 plug & DRL wiring | Jeep Wrangler JK/TJ, classic 4×4 | DOT / SAE Compliant | Explore → |
| RGBW Rock Lights | Chassis & obstacle spotting | Wheel wells, undercarriage | Wire extension lead lengths | Rock crawlers, show vehicles | Off-road only while in motion | Explore → |
| AR-800 Switch Panel | Centralized accessory management | Engine bay relay / In-cab dash | Total amperage (60A limit) | Multi-light & accessory builds | Universal electronic accessory | Explore → |
Brightness, Beam Patterns, and Color Temperature Explained
Navigating automotive lighting specifications can be confusing. Below is a breakdown of core optical concepts and why numbers on a box must be interpreted correctly:
1. Raw Lumens vs. Usable Lux on the Trail
Lumens measure the total amount of visible light produced by all LED chips inside a fixture. However, raw lumens alone do not guarantee better vision. If those lumens are scattered aimlessly into the tree canopy or reflecting off your vehicle’s hood, they waste energy and ruin your night vision.
Lux measures light intensity concentrated onto an actual surface (1 lux is roughly equivalent to the illumination of a full moon on a clear night). A 100W light bar with precision 5D projector optics can throw 1 lux past 800 meters, whereas an unfocused 200W flood bar might reach only 200 meters while overwhelming the immediate foreground with blinding glare.
2. Beam Patterns: Spot vs. Flood vs. Combo
- Spot Beam (10° to 30°): Projects a narrow, laser-focused cylinder of light far into the distance. Essential for high-speed desert running or long rural highway visibility, allowing drivers to spot hazards, ruts, and animals hundreds of yards ahead.
- Flood Beam (60° to 120°): Spreads light widely across the immediate foreground and sides. Ideal for technical rock crawling, ditch lighting, campsite setup, and tight wooded trails where you need to see tree branches and obstacles beside your front tires.
- Combo Beam: The industry standard for single light bar setups. Centers concentrated spot optics directly in front of the vehicle while flanking the outer sections with wide flood reflectors.
3. Color Temperature: 3000K Amber vs. 6000K–6500K Cool White
Color temperature is measured in Kelvin (K):
- 6000K–6500K (Cool White): Closely replicates natural noon sunlight. Human eyes perceive high contrast and sharp object definition under cool white light on dry roads and clear trails. However, in heavy dust, rain, or snow, short blue-spectrum wavelengths reflect off water droplets and dust particles, creating blinding whiteout back-glare.
- 3000K (Selective Amber / Yellow): Longer light wavelengths penetrate through suspended moisture, fog, and dust particles with minimal optical refraction. Running amber pod lights or amber light bar covers dramatically increases trail depth perception during inclement weather and dust storms.
Vehicle Compatibility & Fitment Checklist
Before ordering any automotive lighting upgrade, run through this practical pre-purchase checklist:
- Verify Bulb Socket Code: Never rely on vehicle guesswork. Check your vehicle owner’s manual or pull your factory bulb to read the stamped base code (e.g., H11 for low beam, 9005/HB3 for high beam, H4/9003 for dual high/low).
- Check Headlight Housing Clearance: Measure the space between the rear of your factory bulb socket and your vehicle’s battery, air intake, or firewall. High-power bulbs like the GX Ultra require 1.2 to 1.5 inches of clearance for the heat sink and fan.
- Dust Cover Depth: Sealed headlight assemblies use rubber or hard plastic dust caps. If an LED bulb base prevents the factory cap from sealing, order extended flexible rubber dust caps to keep road grime and moisture out of your reflectors.
- CANbus & Anti-Flicker Requirements: Modern Dodge, RAM, Jeep, Chrysler, Ford, and European vehicles utilize Pulse-Width Modulation (PWM) on their headlight circuits. If replacing halogen bulbs with LEDs causes dashboard warnings or strobe flickering, install an inline CANbus anti-flicker decoder harness.
- Polarity Check: Unlike incandescent halogen filaments which work regardless of current direction, LED chips are directional diodes. If an installed bulb fails to illuminate, unplug the harness, flip the connector 180 degrees, and reconnect.
Auxbeam Switch Panels & Electrical Load Planning
Adding multiple high-output auxiliary lights quickly taxes your vehicle’s 12V electrical system if not engineered properly. An Auxbeam switch panel simplifies and protects your build:
How Solid-State Relays Protect Your Build
Traditional mechanical automotive relays use physical electromagnets and copper contact points that can arc, corrode, and fail under extreme heat and trail vibration. Auxbeam switch panels (like the AR-800 and BA80) utilize **solid-state power MOSFETs** and integrated circuit protection. They eliminate mechanical contact wear, run cooler, and automatically shut down circuits if a short or over-current event occurs.
Calculating Electrical Load (Amps = Watts / Volts)
To prevent blowing fuses and draining your battery, always calculate total amperage draw before connecting lights to a switch circuit:
Amperage (A) = Total Watts (W) ÷ Operating Voltage (12V)
- A 360W 42-Inch Light Bar draws: 360W ÷ 12V = 30 Amps (Requires a 30A circuit output).
- A pair of 96W Pod Lights draws: 96W ÷ 12V = 8 Amps (Easily handled by a 10A or 15A circuit output).
- An 8-Pod RGBW Rock Light Kit draws: ~36W ÷ 12V = 3 Amps (Ideal for a 5A or 10A circuit output).
Off-Road Lighting & Responsible Highway Use
Auxiliary off-road lights and roof-mounted light bars are designed to illuminate vast open landscapes. Operating them responsibly protects fellow motorists and keeps your vehicle street-legal:
- Highway Restrictions: It is illegal in all 50 US states to illuminate non-DOT-approved off-road light bars, roof floods, or auxiliary driving lights on public streets or highways while other vehicles are present. Even on empty rural roads, sudden oncoming traffic can be blinded instantly.
- Blackout Covers: Several states (including California, Pennsylvania, and Virginia) legally require auxiliary off-road lights mounted above headlight level to be covered with opaque blackout covers while driving on public highways. Auxbeam manufactures snap-on covers for its light bar series.
- Street-Legal Fog Lights: Auxiliary fog lights mounted below factory headlights must conform to SAE J583 standards with a strict horizontal cutoff. They should only be operated during heavy fog, rain, or snow.
- Trail Etiquette: When traveling in a multi-vehicle off-road convoy, turn off your high-intensity forward light bar and switch to low-intensity amber pods or headlights. Blinding the vehicle ahead through their side mirrors ruins their trail navigation.
Installation & Maintenance Best Practices
Proper installation ensures your lighting setup withstands years of mud, rain, salt, and intense trail vibration:
- Aiming LED Headlights: After installing replacement LED bulbs, park your vehicle on level ground 25 feet away from a flat wall. The top of the low-beam light cutoff should sit approximately 2 inches below the center height of your vehicle’s headlight lens to ensure road throw without blinding oncoming traffic.
- Orienting LED Chips: For dual-sided LED replacement bulbs (like GX Ultra or F-16), always rotate the adjustable collar until the LED chips face **horizontally** (pointing directly toward 3 o’clock and 9 o’clock). This allows your factory reflector bowls to cast the intended beam pattern.
- Sealing Connections: Even with IP68 waterproof ratings, always coat harness plugs with a thin layer of dielectric grease before locking waterproof Deutsch connectors together. This prevents pin oxidation and galvanic corrosion from winter road salt.
- Wiring Loom Protection: Route all accessory wiring through split-loom tubing or braided wire sleeves. Secure wiring harnesses tightly to factory chassis points using nylon zip ties, keeping wires far away from sharp metal edges and hot exhaust manifolds.
Is Auxbeam Right for Your Vehicle?
Auxbeam occupies a specific, highly successful niche in the automotive lighting market: delivering high-output LED illumination, heavy-duty aluminum construction, and modern digital switch controls at price points accessible to everyday working truck owners and weekend trail riders.
Where Auxbeam Dominates
- Unmatched Value-to-Performance Ratio: Buying a top-tier commercial boutique 50″ light bar or switch panel can easily cost $800 to $1,500. Auxbeam delivers 85–90% of the usable trail illumination and digital control features for a fraction of that investment.
- All-in-One Accessory Systems: Products like the AR-800 switch panel bridge the gap between complex electrical engineering and DIY plug-and-play simplicity.
- Broad Category Depth: From simple H11 replacement bulbs to 8-gang Bluetooth controllers and rock crawler underglow, you can source your entire vehicle lighting build from a unified catalog.
Considerations to Note
- Extreme professional desert-racing applications running 100+ MPH through Baja silt beds may still warrant specialized race-grade lighting with replaceable polycarbonate front lenses. But for overlanders, campers, hunters, daily commuters, and weekend trail riders, Auxbeam represents one of the smartest investments on the market.
Frequently Asked Questions (Auxbeam Lighting FAQ)
Final Buying Recommendations
To build the perfect lighting setup for your vehicle, match your driving priorities to these proven configurations:
- For maximum nighttime road throw and highway clarity: Upgrade your factory headlight sockets with the high-output Auxbeam GX Ultra Series.
- For all-weather overlanding and dust penetration: Mount a set of Auxbeam 6-Mode Amber/White Pod Lights on your cowl or front bumper.
- For high-speed desert trails and extreme nighttime visibility: Install an Auxbeam 5D-PRO Series Combo Light Bar on your bumper or roof rack.
- For Jeep Wrangler and classic truck owners: Replace dim sealed-beam buckets with Auxbeam 7″ Round DOT-Approved Projector Headlights.
- To organize and safeguard multiple electrical accessories: Consolidate your wiring under the hood with the Auxbeam AR-800 8-Gang Bluetooth Switch Panel.
Explore Verified Auxbeam Automotive Lighting & Controls
Review current model availability, verified bulb fitments, switch panel packages, and official vehicle accessories directly on the store:
